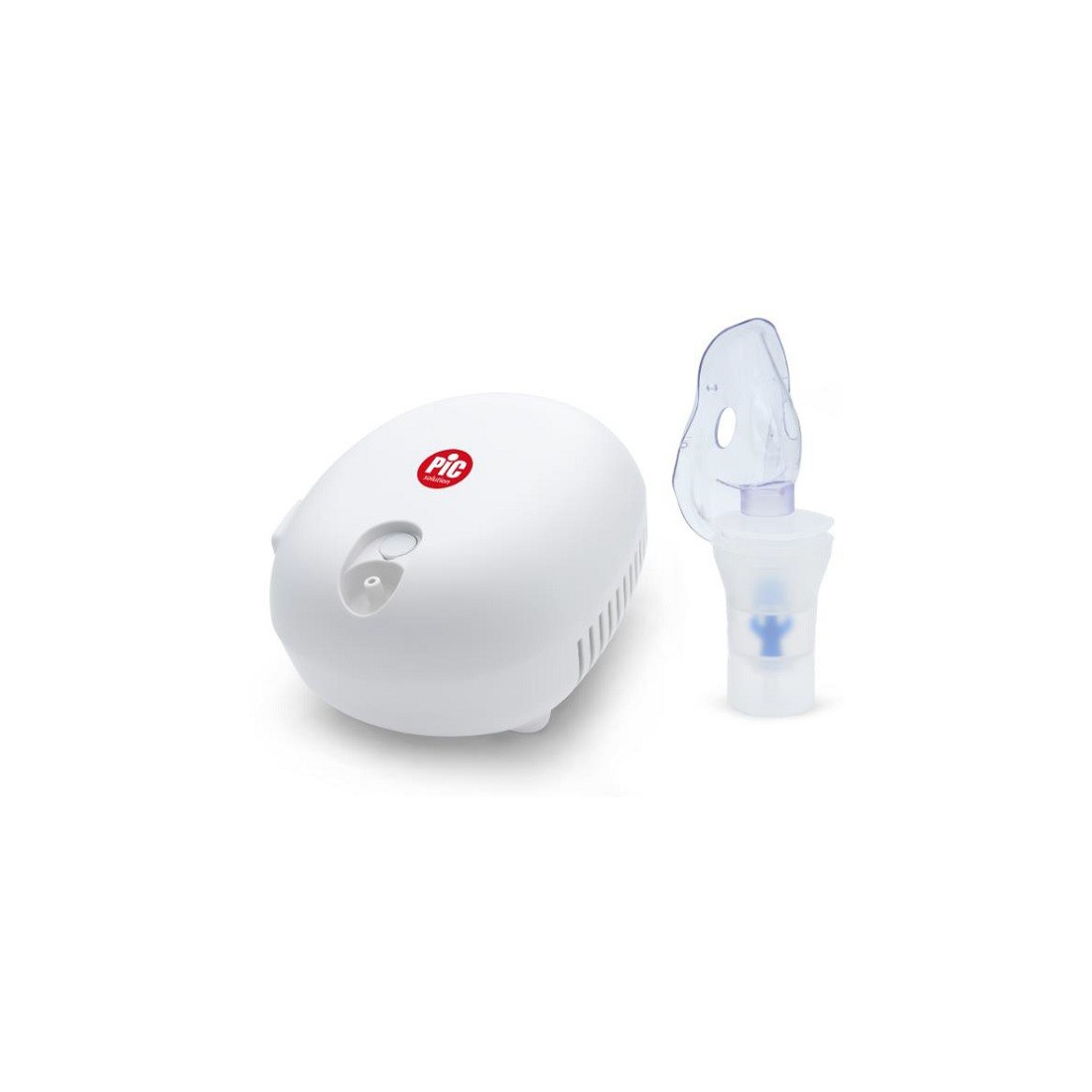

AIRCube2
Description
Medical device CE Class IIa (EU Regulation 2017/745).
Aerosol therapy device. Fast, compact and ideal for the whole family. Equipped with ampoule that guarantees the rapidity and effectiveness of therapy. With door and handle.
Without latex and phthalates.
Technical specifications
Rated voltage: About 230 V.
Frequency: 50 Hz.
Absorbed power: 50 W.
Fuse: T2AH250V.
Maximum pressure: 2.57 ± 0.11 bar.
Operating pressure: 0,98 ± 0.06 bar.
Liquid protection: IP 21.
Operating conditions: 20 minutes ON - 40 minutes OFF.
MMAD:
Breathable fraction:
Ampoule capacity: maximum 8 ml - minimum 2 ml.
Rumourity: 60 dBA @50 cm - 58 dBA @100 cm.
Mode of use
Suitable for treatment of aerosoltherapy.
Operating temperature: between -5°C and +40°C.
Operating humidity: between 15% and 85% RH.
Operating pressure: between 700 and 1.060 hPa.
Cleaning and maintenance: Remove the mask from the amp. Disconnect the connection pipe from the amp. Disassemble all components of the amp. Throw the remaining drug. Wash components in water. Dry by hand or air in a clean environment using a soft, clean and hairless cloth. Mount the amp and place in a dry place.
Procedure for disinfection: disinfect the amp, mouthpiece, masks or nasal fork after the last treatment of the day, according to the following procedure. Use a 70% ethyl alcohol solution:
Step 1. Dip the components into the disinfectant solution for 10 minutes.
Step 2. Remove the components and throw the solution.
Step 3. Rinse components with clean drinking water (60 seconds), shake excess water and let dry air in a clean environment.
Components
Baby mask: PVC.
Connection pipe: PVC.
Ampolla: Polypropylene + Polycarbonate.
Warnings
Never immerse or wet the appliance in water or other liquids. For its cleaning use only a clean and dry soft cloth.
Don't boil masks.
Never use benzene, diluents or other flammable chemicals for cleaning. This cleaning procedure has been verified for 365 cleaning cycles. For greater hygiene and safety reasons, never use the same accessories for more than one patient. It is recommended to clean and verify the integrity of the accessories before and after each use and replace them in case of damage.
Conservation
Store in a cool and dry place, away from heat sources and solar rays.
Storage temperature: between -25°C and +70°C.
Storage Humidity: between 15% and 85% RH.
Storage pressure: between 700 and 1.060 hPa.
Validity of packaging: 12 months.
Format
Aerosol device.
Includes: nebulizer ampoule, adult mask, pediatric mask, fitting tube, mouthpiece, nasal fork, air filters, integrated ampoule door and handle.
Cod. 5803822000010
Medical device CE Class IIa (EU Regulation 2017/745).
Aerosol therapy device. Fast, compact and ideal for the whole family. Equipped with ampoule that guarantees the rapidity and effectiveness of therapy. With door and handle.
Without latex and phthalates.
Technical specifications
Rated voltage: About 230 V.
Frequency: 50 Hz.
Absorbed power: 50 W.
Fuse: T2AH250V.
Maximum pressure: 2.57 ± 0.11 bar.
Operating pressure: 0,98 ± 0.06 bar.
Liquid protection: IP 21.
Operating conditions: 20 minutes ON - 40 minutes OFF.
MMAD:
| 0.1% Albuterol | Fluibron Solution 15 mg/2 ml by Ambroxolo HCl) | Pulmaxan suspension (0,5 mg/ml of Budesonide) | |
| MMAD | 3.59 ± 0.18 micrometers | 3.85 ± 0.06 micrometers | 4.55 ± 0.16 micrometers |
Breathable fraction:
| 0.1% Albuterol | Fluibron Solution 15 mg/2 ml by Ambroxolo HCl) | Pulmaxan suspension (0,5 mg/ml of Budesonide) | |
| Respirable fracture % | 61,2 ± 0.02 | 60,3 ± 0.02 | 50,3 ± 0.03 |
Ampoule capacity: maximum 8 ml - minimum 2 ml.
Rumourity: 60 dBA @50 cm - 58 dBA @100 cm.
Mode of use
Suitable for treatment of aerosoltherapy.
Operating temperature: between -5°C and +40°C.
Operating humidity: between 15% and 85% RH.
Operating pressure: between 700 and 1.060 hPa.
Cleaning and maintenance: Remove the mask from the amp. Disconnect the connection pipe from the amp. Disassemble all components of the amp. Throw the remaining drug. Wash components in water. Dry by hand or air in a clean environment using a soft, clean and hairless cloth. Mount the amp and place in a dry place.
Procedure for disinfection: disinfect the amp, mouthpiece, masks or nasal fork after the last treatment of the day, according to the following procedure. Use a 70% ethyl alcohol solution:
Step 1. Dip the components into the disinfectant solution for 10 minutes.
Step 2. Remove the components and throw the solution.
Step 3. Rinse components with clean drinking water (60 seconds), shake excess water and let dry air in a clean environment.
Components
Baby mask: PVC.
Connection pipe: PVC.
Ampolla: Polypropylene + Polycarbonate.
Warnings
Never immerse or wet the appliance in water or other liquids. For its cleaning use only a clean and dry soft cloth.
Don't boil masks.
Never use benzene, diluents or other flammable chemicals for cleaning. This cleaning procedure has been verified for 365 cleaning cycles. For greater hygiene and safety reasons, never use the same accessories for more than one patient. It is recommended to clean and verify the integrity of the accessories before and after each use and replace them in case of damage.
Conservation
Store in a cool and dry place, away from heat sources and solar rays.
Storage temperature: between -25°C and +70°C.
Storage Humidity: between 15% and 85% RH.
Storage pressure: between 700 and 1.060 hPa.
Validity of packaging: 12 months.
Format
Aerosol device.
Includes: nebulizer ampoule, adult mask, pediatric mask, fitting tube, mouthpiece, nasal fork, air filters, integrated ampoule door and handle.
Cod. 5803822000010
