Descrizione Clinica

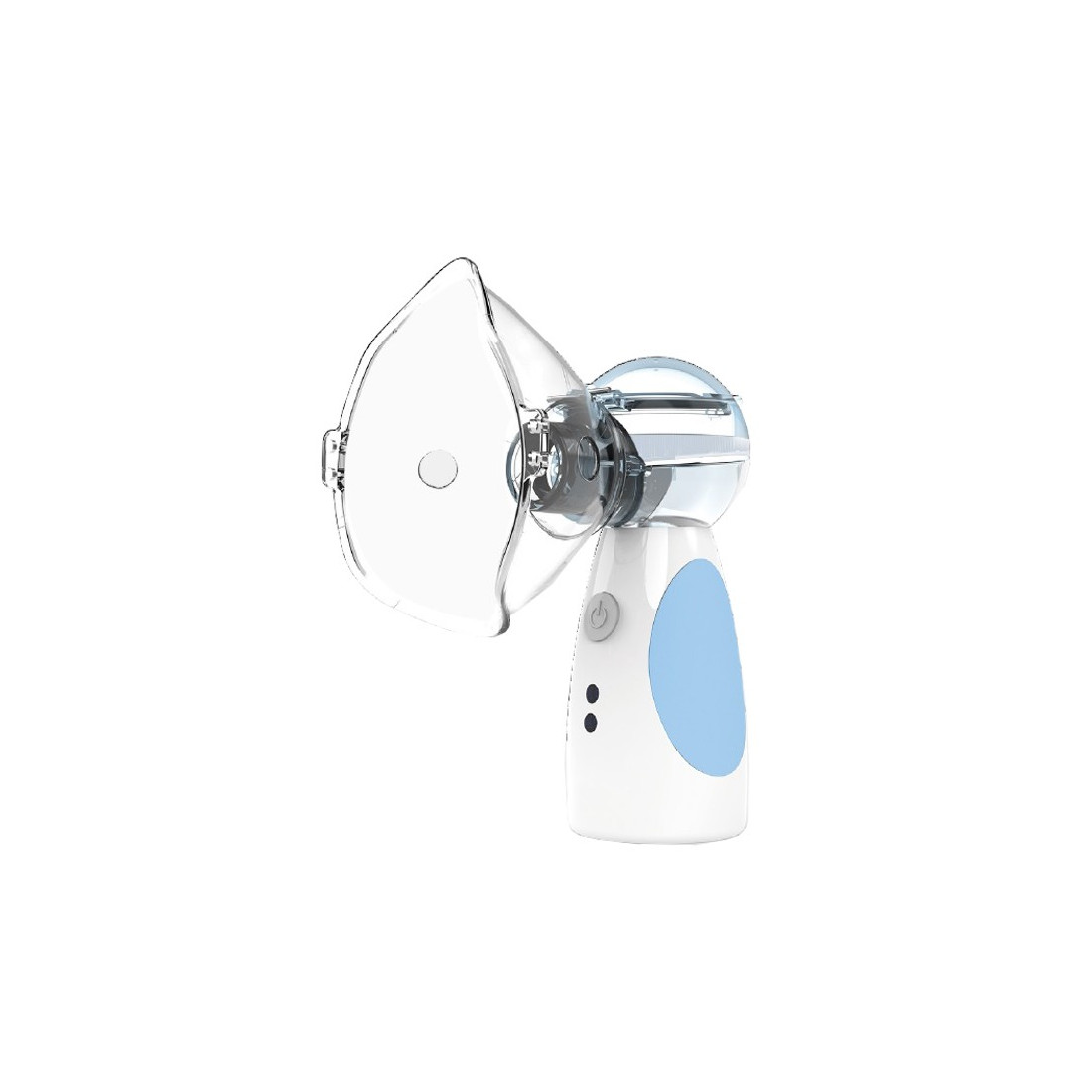

MC EVOLUTION
Ultrasonic Net Nebulizer
Description
Ultrasonic vibrating mesh nebulizer system, designed to aerosolize solutions prescribed by the doctor for inhalation to adult and pediatric patients at supeiror age two years.
Suitable for medical institutions and home care.
Mode of use
Battery installation
Open the battery cover. Install batteries correctly based on positive and negative indicators. Close the battery cover.
When the battery is low and the mist mode indicator flashes, immediately replace the batteries.
Remove the batteries from the battery compartment if the instrument is not used for a long time.
How to use
Attach the mask to the medicine cup. Select the correct mask. The big mask is suitable for adults, the small mask is suitable for children.
The mask can be reused 20 times.
Open the cover of the drug cup and fill the cup with the liquid of the drug. Close the cover, to prevent the liquid from getting out.
Consult your physician for the dosage of the liquid drug.
Shortly press the power button and the indicator light (green) will turn on. After cleaning, fixed green light, the nebulization begins. The default option is the lowest level; press briefly the button to move from the low, medium to high level and the color of the mode indicator changes accordingly (the bass is green after the flashing green, the average is blue and the top is cyan). The nebulizer flashes in blue when the power is too low during normal operation and yellow light flashes when the liquid runs out.
The nebulizer works for 10 minutes for each use. If you want to continue using it after automatic shutdown, press the on/off button again for a short time.
At the end of the nebulization, briefly press the on/off button to turn off the device.
Cleaning and disinfection
Remove the pan from the main unit. Pour the remaining liquid. Clean the cup from the drug with clean and purified water that does not exceed 40 °C. Dry the medicine cup in a ventilated place, then place it on the main unit.
The main unit must be cleaned with a soft and dry cloth and non-abrasive detergents. Allow to dry in the air on a clean paper napkin.
Clean all parts of the nebulizer after each treatment, to reduce the risk of infection, disease or contamination injuries. Clean or replace accessories after each treatment.
Only the nebulizer and original accessories can ensure proper treatment.
Warnings
Do not immerse the device in water.
Do not change or disassemble.
Do not reuse the device if damaged, if the switch button is faulty, if the indicator is spoiled, beyond the useful duration, if the medicine cup is damaged or deformed.
Do not use the device in RM environments.
The device cannot be used with other equipment.
The nebulizer can only be used for the specified purpose, i.e. nebulization.
Always clean and disinfect the parts of the nebulizer in contact with the liquid before using the device.
Remove stains on the electrodes, otherwise it could reduce the nebulization effect.
Do not clean the net of the medicine pan with cotton fioc or brushes.
Before using the nebulizer, it is necessary to visually check if the pan of the drug is full of medicine to avoid damage to the network.
Remove batteries if the instrument is not used for a long time.
Don't drop the nebulizer.
Keep out of reach of infants, children and people with mental illness when not used.
Format
1 piece
Cod. MC2001
Ultrasonic vibrating mesh nebulizer system, designed to aerosolize solutions prescribed by the doctor for inhalation to adult and pediatric patients at supeiror age two years.
Suitable for medical institutions and home care.
Mode of use
Battery installation
Open the battery cover. Install batteries correctly based on positive and negative indicators. Close the battery cover.
When the battery is low and the mist mode indicator flashes, immediately replace the batteries.
Remove the batteries from the battery compartment if the instrument is not used for a long time.
How to use
Attach the mask to the medicine cup. Select the correct mask. The big mask is suitable for adults, the small mask is suitable for children.
The mask can be reused 20 times.
Open the cover of the drug cup and fill the cup with the liquid of the drug. Close the cover, to prevent the liquid from getting out.
Consult your physician for the dosage of the liquid drug.
Shortly press the power button and the indicator light (green) will turn on. After cleaning, fixed green light, the nebulization begins. The default option is the lowest level; press briefly the button to move from the low, medium to high level and the color of the mode indicator changes accordingly (the bass is green after the flashing green, the average is blue and the top is cyan). The nebulizer flashes in blue when the power is too low during normal operation and yellow light flashes when the liquid runs out.
The nebulizer works for 10 minutes for each use. If you want to continue using it after automatic shutdown, press the on/off button again for a short time.
At the end of the nebulization, briefly press the on/off button to turn off the device.
Cleaning and disinfection
Remove the pan from the main unit. Pour the remaining liquid. Clean the cup from the drug with clean and purified water that does not exceed 40 °C. Dry the medicine cup in a ventilated place, then place it on the main unit.
The main unit must be cleaned with a soft and dry cloth and non-abrasive detergents. Allow to dry in the air on a clean paper napkin.
Clean all parts of the nebulizer after each treatment, to reduce the risk of infection, disease or contamination injuries. Clean or replace accessories after each treatment.
Only the nebulizer and original accessories can ensure proper treatment.
Warnings
Do not immerse the device in water.
Do not change or disassemble.
Do not reuse the device if damaged, if the switch button is faulty, if the indicator is spoiled, beyond the useful duration, if the medicine cup is damaged or deformed.
Do not use the device in RM environments.
The device cannot be used with other equipment.
The nebulizer can only be used for the specified purpose, i.e. nebulization.
Always clean and disinfect the parts of the nebulizer in contact with the liquid before using the device.
Remove stains on the electrodes, otherwise it could reduce the nebulization effect.
Do not clean the net of the medicine pan with cotton fioc or brushes.
Before using the nebulizer, it is necessary to visually check if the pan of the drug is full of medicine to avoid damage to the network.
Remove batteries if the instrument is not used for a long time.
Don't drop the nebulizer.
Keep out of reach of infants, children and people with mental illness when not used.
Format
1 piece
Cod. MC2001
