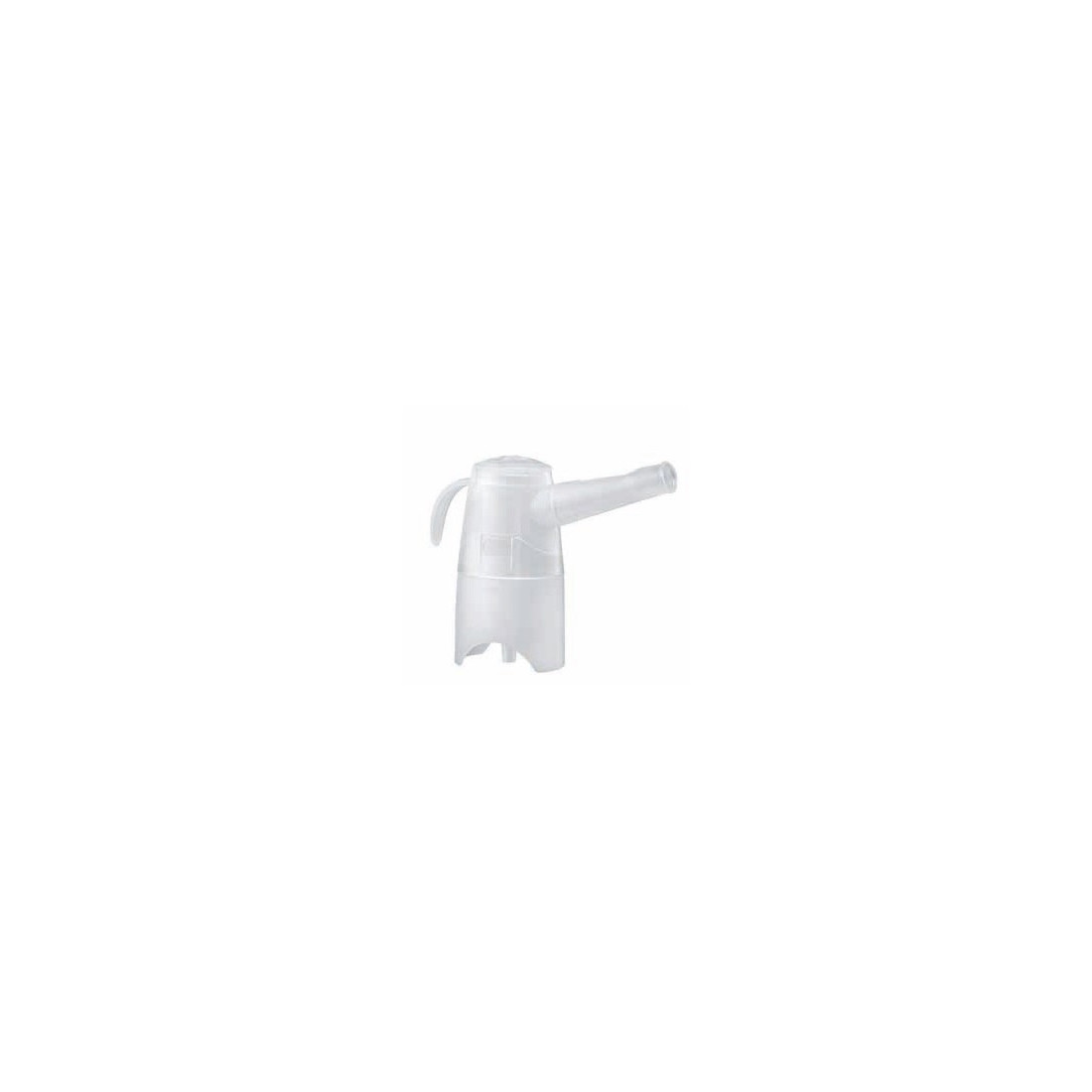

HI-4
NEBULIZATION FOR AEROSOL
Description
4-speed sprayer and valve system (breath enhanced).
Guaranteed stability of drugs thanks to the special materials that make it. The HI-4 nebulizer guarantees 100% stability and the characteristics of the following medications: Salbutamolo (Ventolin), Beclometasone Dipropionate (Clenil), Budesonide (Pulmicort/Pulmaxan), Acetilcisteina (Fluimucil).
Mode of use
-Inhalation valve: the three valves located on the top of the nebulizer open mechanically thanks to the air flow generated by the patient's inspiratory act, recalling from the outside additional air. The air flow from the compressor and the air flow conveyed from the outside increase the micronization activity within the nebulizer and speed the administration to the patient.
-Expiration valve: the expiration valve remains closed during the inhalation phase to avoid drug dispersions in the environment, and then open during the exhalation and direct the expiration flow outward, without mixing with the drug still present in the nebulizer.
-Ghiera 4 speed: the various dispensing speeds can be adapted to the patient's respiratory capacity, up to double in IV, while maintaining the optimal particle size to effectively settle in the respiratory tract.
Cod. RE 300350
4-speed sprayer and valve system (breath enhanced).
Guaranteed stability of drugs thanks to the special materials that make it. The HI-4 nebulizer guarantees 100% stability and the characteristics of the following medications: Salbutamolo (Ventolin), Beclometasone Dipropionate (Clenil), Budesonide (Pulmicort/Pulmaxan), Acetilcisteina (Fluimucil).
Mode of use
-Inhalation valve: the three valves located on the top of the nebulizer open mechanically thanks to the air flow generated by the patient's inspiratory act, recalling from the outside additional air. The air flow from the compressor and the air flow conveyed from the outside increase the micronization activity within the nebulizer and speed the administration to the patient.
-Expiration valve: the expiration valve remains closed during the inhalation phase to avoid drug dispersions in the environment, and then open during the exhalation and direct the expiration flow outward, without mixing with the drug still present in the nebulizer.
-Ghiera 4 speed: the various dispensing speeds can be adapted to the patient's respiratory capacity, up to double in IV, while maintaining the optimal particle size to effectively settle in the respiratory tract.
| Pos. | Particle diameter (MMAD) | Drug Expedition Speed | Time for Therapy (with 5 ml solution) |
| I | 3,32 mcm | 0,40 ml/min | 12' 30'' |
| II | 4,07 mcm | 0,60 ml/min | 8' 20'' |
| III | 4,23 mcm | 0,70 ml/min | 7' 8'' |
| IV | 4,18 mcm | 0,80 ml/min | 6' 15'' |
Cod. RE 300350
