Descrizione Clinica

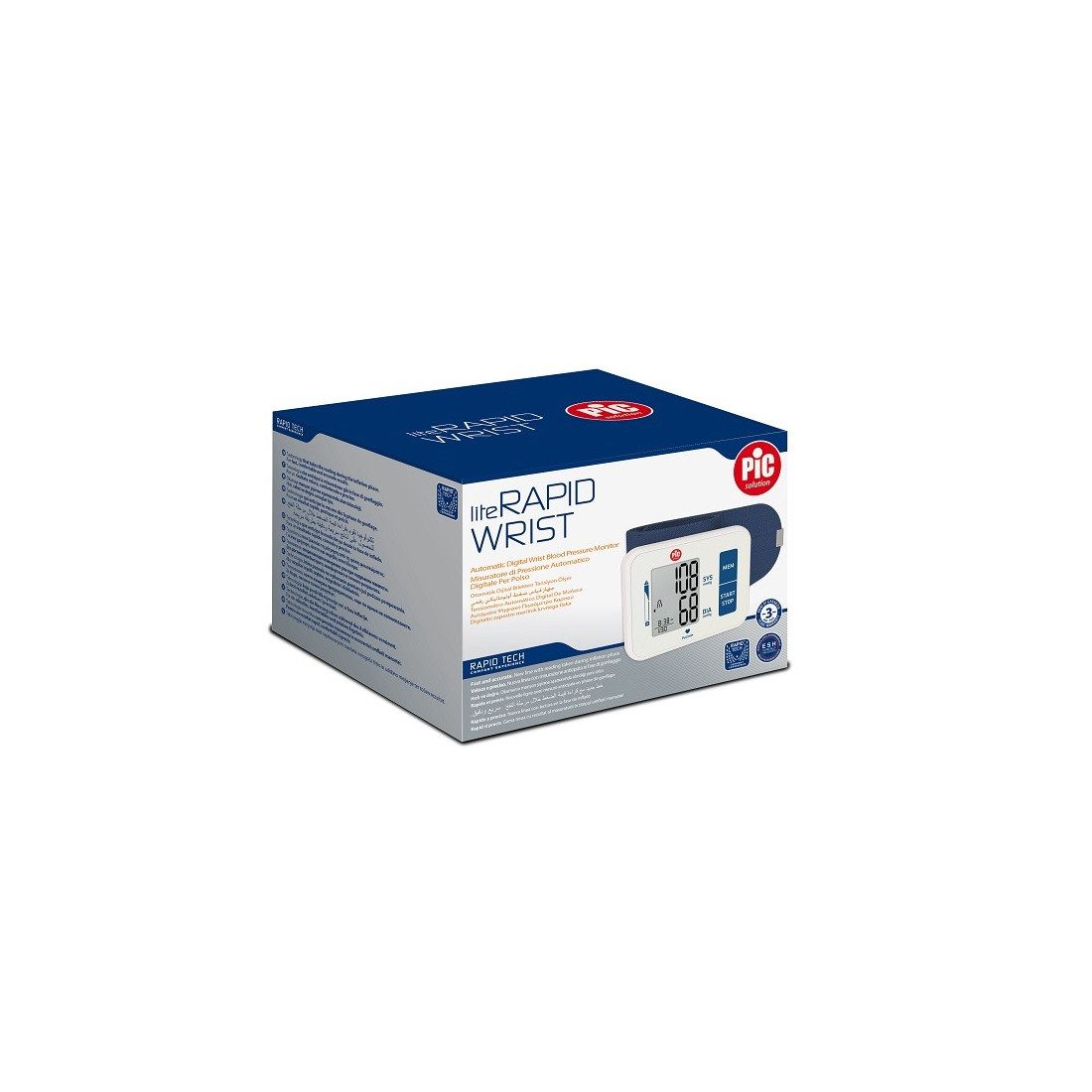

Literapid Wrist
Automatic pressure meter
Description
Automatic wrist digital pressure meter.
To measure arterial pressure.
For domestic and hospital use.
How to use
Remove watches, jewelry and so on before wearing the wrist meter.
To obtain correct measurements, the sleeves must be rolled up and the bracelet worn on the naked skin.
Apply the bracelet preferably to the left wrist, with the palm facing up.
Make sure the edge of the bracelet is at a distance of about 1 - 1.5 cm from the joints of the wrist.
To ensure accurate measurements, fasten the Velcro strap firmly around the wrist, so that there is no space between the bracelet and the wrist.
If the bracelet is not tight enough, the measurement values could be inaccurate.
Sit in a comfortable position by resting the wrist used for measuring a flat surface.
Place the elbow on a table, so the bracelet is at the same level as the heart.
Turn the palm upwards.
Set erected on a chair and make 5-6 deep breaths.
With the meter it is off, press the Start / Stop button to turn on the appliance and start the measurement.
Press the Start / Stop button to turn off the appliance, otherwise it will turn off within 1 minute.
Warnings
Avoid contact with water and, if necessary, clean with a dry cloth.
Avoid intense and shock vibrations.
Avoid dusty environments and with unstable temperature.
Do not use abrasive or solvent detergents.
Avoid washing the bracelet with water.
This appliance is not suitable for use on newborns, children or pregnant women. The appliance was not validated for use on the categories of patients listed above, and could be dangerous. The suitability for use of adolescents must be evaluated by a doctor.
The use of the appliance is contraindicated on women with suspicion of pregnancy or pregnant or suffering from preeclampsia. In addition to determining inaccurate readings, the effects of the appliance is not known on the fetus.
The appliance is not suitable for use on people with a circumference of the wrist not returned to the range between 13.5 and 19.5 cm.
People with reduced cognitive abilities must use the device under supervision.
Keep away from children's reach, from people with reduced cognitive skills or domestic animals: the device contains small parts that can cause suffocation or internal injury in case of ingestion.
The measurement of arterial pressure is not indicated in the event of severe arteriosclerosis (hardening and loss of elasticity of the arts of arteries).
If the bracelet pressure reaches a value of 300 mmHg, the bracelet is automatically deflated. If the wrist bracelet does not deflate when a pressure value of 300 mmHg is reached, or if you try it annoys during the measurement, remove it from the wrist and press the Start / Stop button to stop inflation.
The carriers of implanted medical devices must consult the doctor before using the appliance.
This appliance cannot be used simultaneously with high frequency surgical equipment.
The appliance is not intended for use during transport of patients outside a health facility.
It is not intended for use on ends other than the wrist or for functions other than the measurement of arterial pressure.
To avoid measurement errors, avoid conditions of strong disturbance signals emitted from electromagnetic field or fast electric transient signals / burst.
Before use, the user must verify that the operation of the appliance is safe and that the same is in good condition.
Too frequent measurements of arterial pressure can be harmful to the patient since they can compromise blood circulation. Check (by observing the attention of interest) that the operation of Literapid Wrist does not cause prolonged alterations of the patient's bloodstream.
The unit is not suitable for continuous monitoring in case of medical emergencies or interventions. Otherwise, the patient's wrist and fingers could numb, inflate and become purple color due to the reduced blood flow.
If, in rare error occasions, the bracelet should remain completely inflated during measurement, open it immediately. Exercising a high pressure on the wrist for prolonged periods (bracelet pressure <300 mmHg or constant pressure> 15 mmHg for over 3 minutes) can cause an earchosis (bruise).
The device includes sensitive components and must be handled with caution.
Use the appliance in the environments provided by the user manual. Otherwise, this could compromise and reduce the performance and life of the appliance.
Do not use in case of polyester allergy, nylon or plastic.
The application of the bracelet on a wound can cause further injury.
The application of the bracelet and its inflating on arts with intravascular access or therapy or arteroomy shunt can cause patient injury because it involves a temporary impairment of blood circulation.
The appliance is not indicated for use by people subjected to mastectomy.
The application of the bracelet and its inflation on the wrist of an arm at which a mastectomy has been carried out can lead to the risk of injury; Furthermore, measurement may not be accurate.
Do not inflate the bracelet on the same limb on which another monitoring device is simultaneously applied, as this may cause temporary interruptions of the other device's operation.
Device of type not AP / APG, not suitable for use in the presence of mixtures of flammable anesthetics with air or with oxygen or nitrogen protoxide.
Maintenance
Use a soft cloth to carefully clean the appliance before and after use.
Use a damp cloth to remove dirt.
It is recommended to check the performance every 2 years or after repair.
The appliance must be rechued if it suffers damage due to impacts and impacts (such as falls) or exposure to liquids and / or extreme temperatures (hot / cold) or extreme variations of humidity.
Storage
Store the device in a dry environment and protect it from moisture, heat, dust and direct sunlight.
Format
The package contains the pressure meter, the batteries necessary for the operation of the instrument, the instructions for use, the bag.
Cod 0202253400000
