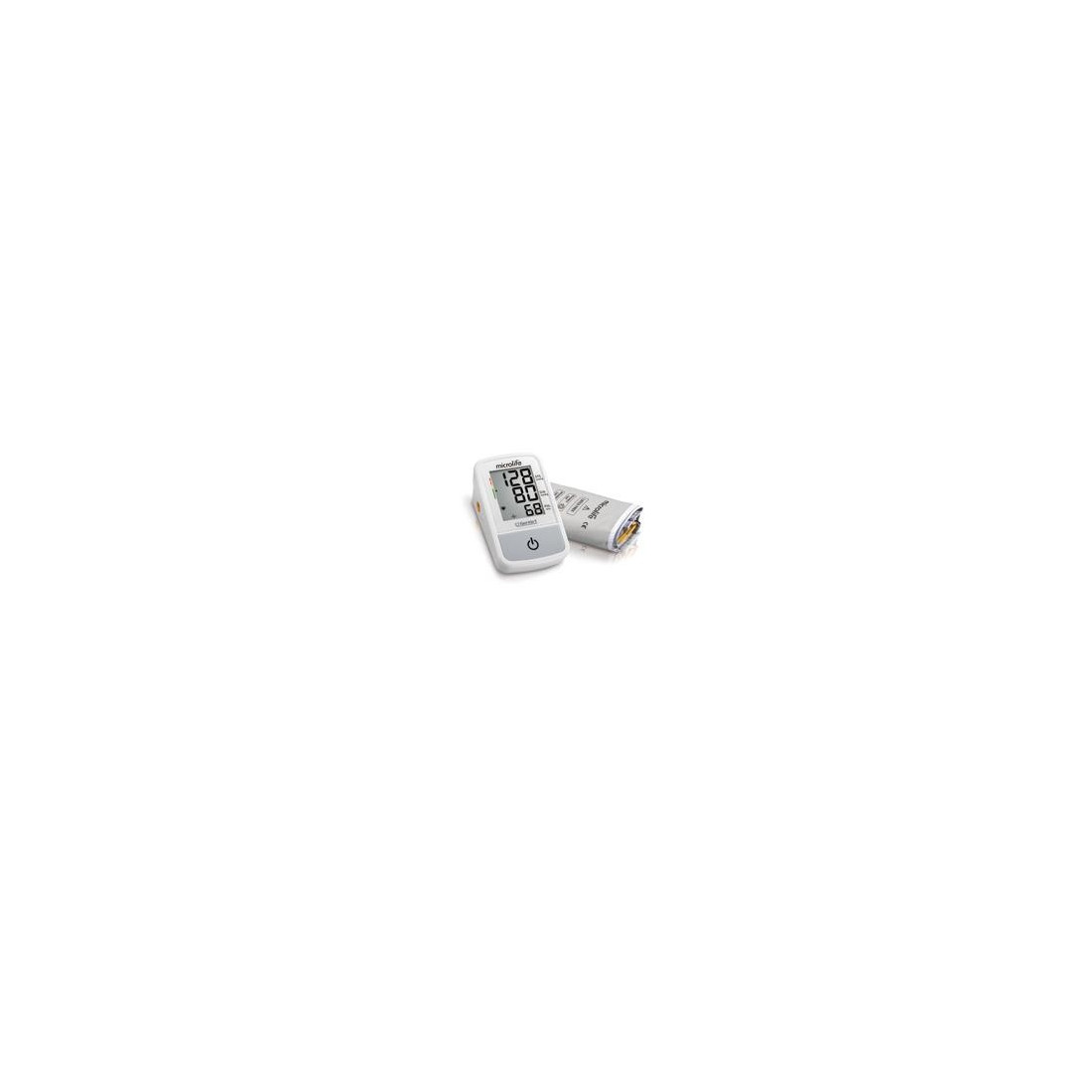

Microlife Automatic Easy

Medical device CE 0044, class IIa.
Domicile meter for measuring pressure on the arm.
Gentle + technology, for a more comfortable measurement. Universal soft and conical bracelet, 22-42 cm. PAD technology, for detection of arrhythmias.
1 key and 1 memory.

Technical characteristics

Operating temperature	10 - 40°C / 50 – 104°F 15 – 95% maximum relative humidity
Storage temperature	- 20 - +55°C / -4 – +131°F 15 – 95% maximum relative humidity
Weight	57 g (including batteries)
Dimensions	135,5 x 82 x 42 mm
Measuring procedure	oscillometric, corresponding to the Korotkoff method: Phase I systolic, Phase V diastolica
Measurement range	20 - 280 mmHg - blood pressure 40 - 200 beats per minute - pulses
Armband Inflator Pressure Range	0 – 299 mmHg
Measurement resolution	1 mm
Static pressure accuracy	± 3 mm
Pulsation accuracy	± 5% of the bed value
Power supply	• 4 x 1,5 V Batteries; size AA • DC transformer 6V, 600 mA (optional)
Reference standard	EN 1060-1 /-3 /-4; IEC 60601-1; IEC 60601-1-2 (EMC)

Warnings
This tool should only be used as an arterial pressure meter.
This tool uses delicate components and must be treated carefully and carefully.
The bracelet is delicate and must be carefully handled.
Do not replace or use other bracelets or fittings of other manufacturers for this device.
Inflate the bracelet only after wearing it.
Do not use the instrument near strong magnetic fields such as those generated by mobile phones or radio installations.
Do not use the tool if damaged or if it works abnormally.
Never open the instrument.
Make sure that children do not use the tool without supervision of an adult. Some parts are so small that they can be ingested.

Conservation
Protect the instrument from water and humidity, extreme temperatures, shocks and falls, dirt and dust, sun rays, hot and cold.
If the instrument is not used for long periods, remove the batteries.

Cod. 10163
