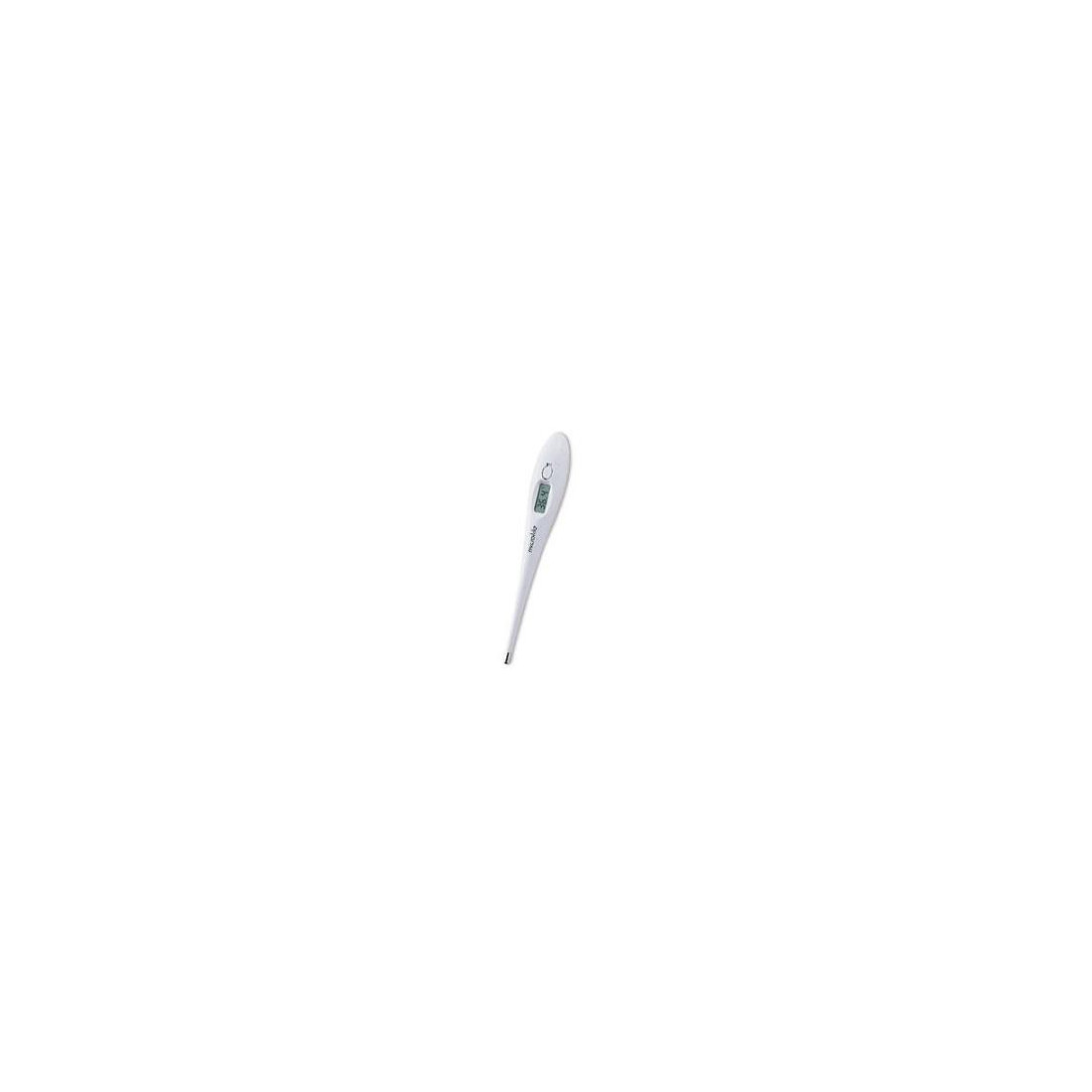

Thermometer Family MT16F1

Medical device CE 0044 class IIa.
Thermometer with temperature measurement in 60 seconds, without mercury.
Memory of the last measurement and sound signal.

Mode of use
Thermometer ignition:
To turn on the thermometer press the ON/ button/OFF; a short acoustic signal indicates that the thermometer is on.
A display test is automatically performed. All segments are displayed.
When the ambient temperature is less than 32 °C will appear on the display a > (Low - temperature too low to be detected) and at the top right a > flashing.
The thermometer is now ready for use.
Instructions for use:
Choose the type of measurement you intend to use.
During the measurement, the temperature is displayed on the display continuously and the > symbol flashes.
When the temperature increase is less than 0.1 °C each 16 seconds the sound signaler (beep-beep-beep for 10 times) will notice that the temperature measurement is finished, the > symbol will cease to flash and the thermometer will be ready for reading the body temperature.
To extend battery life, turn off the thermometer after use briefly pressing the ON/ button/OFF.
Otherwise the thermometer will automatically turn off after about 10 minutes.
Recording of values:
If you hold the ON/ key/OFF for more than three seconds when switching on the thermometer, the temperature recorded during the last measurement will automatically appear on the display.
A small > will indicate that reading is that of a stored data.
About 3 seconds after the button is released, this value will disappear and the thermometer will be ready for measurement.
Subsequently the stored value will be deleted.

Types of measurement
Oral:
Introduce the thermometer into one of the two bags, left or right, next to the root of the tongue. The thermometer sensor must be well in contact with the fabric. Close your mouth and breathe only from your nose so as not to alter the measurement. Approximate measurement time: 1 minute.
Rectal:
It is the safest and particularly suitable method for infants and children. Precautionally introduce the thermometer probe into the anus up to a maximum of 2-3 cm. Approximate measurement time: 1 minute.
Axilla:
For a more reliable result, measure body, oral or rectal temperature. We recommend to keep the thermometer under the armpit for at least 3-5 minutes even after hearing the fine measuring sound signal (beep). Approximate time (at beep): 1 minute.

Cleaning and maintenance
Name: 70% Isopropyl Alcohol.
Use a 70% Isopropyl alcohol-imbosed cotton pad to clean and disinfect the thermometer.
Do not use abrasive detergents or benzene to clean and never immerse the appliance in water or other liquids.

Cod. MT16F1.
